Hardy Process Solutions modular sensor systems for PROFIBUS-DP control systems

Company: Hardy Process Solutions

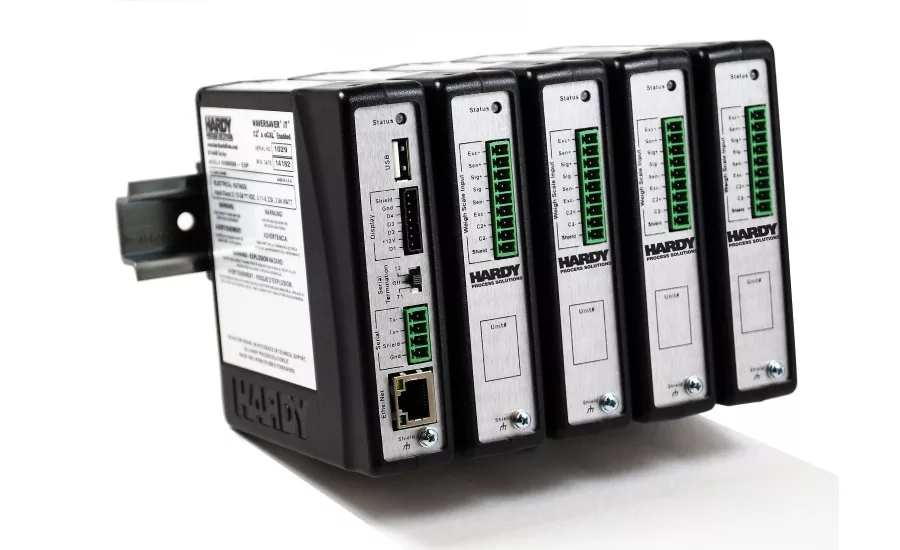

Equipment Snapshot: Hardy Process Solutions announced a new version of the HI 6600 Modular Sensor Systems for PROFIBUS-DP control systems. PROFIBUS-DP (Decentralized Peripherals) is used to operate sensors via a centralized controller in production (factory) automation manufacturing applications.

The modular design of the HI 6600 allows manufacturers, OEMs and systems integrators to configure up to 28 channels of stable, processed weight over a single PROFIBUS-DP connection that sends data for 10 modules at a time to a control system. This distributed design provides the lowest cost, on a per channel basis, for weight into a control system, greatly simplifying wiring and network addressing, all in an ultra-compact, power efficient design. Hardy also provides a PROFIBUS.GSD file, which simplifies integration.

Weight processors are used as front ends to control systems, or standalone for all types of general weighing applications. Operating blind or with an optional display, they measure, condition, and communicate weight without any need to control. The HI 6600 series is designed to support weighing applications in process and packaging such as inventory management, blending, filling and checking. The HI 600 is especially well suited for batching systems, multi-head fillers and tank farms.

According to Tim Norman, product manager, Hardy Process Solutions, “The HI 6600 series for PROFIBUS-DP meets the respective needs of manufacturers, OEMs and System Integrators seeking flexible multi-channel, high-resolution weight processors that are simple to install on a PROFIBUS-DP network. The HI 6600 series is designed to meet the weighing application needs of food processing, chemical, consumer package goods, and general manufacturing automation, at a very low price per channel.”

The HI 6600 series delivers stable processed weight with a resolution of 1:10:000 and an update speed at 110 updates per second, per channel (processor, display and communications). The HI 6600 system enhances the productivity of process manufacturing systems where fast, precise weight-based controls are critical.

The HI 6600 series is delivered with the Hardy Process Toolbox, including C2 electronic calibration, INTEGRATED TECHNICIAN diagnostics, and WAVERSAVER vibration immunity. An embedded webserver in the Hardy Gateway Module allows access to any of the connected weight processing modules from anywhere on the user’s communications network.
