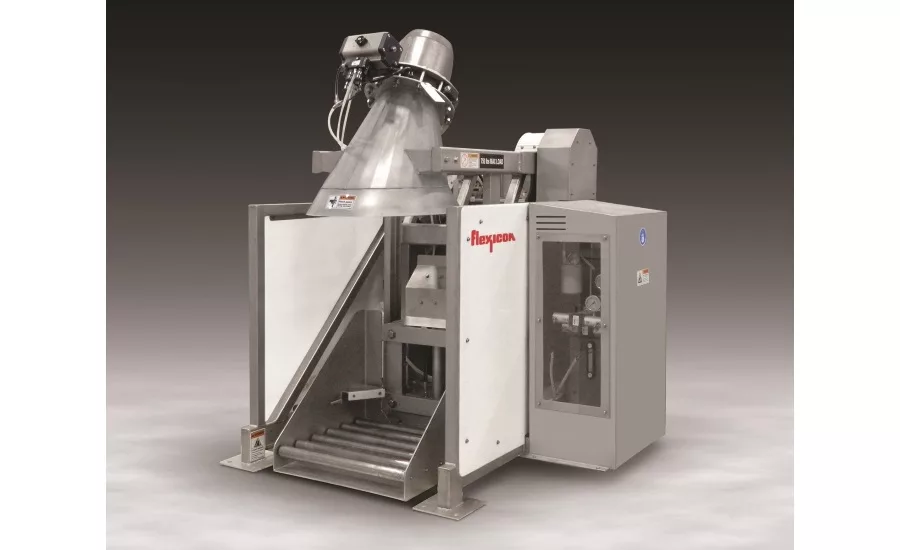

TIP-TITE sanitary drum dumper

Company: Flexicon Corp.

Equipment Snapshot: A new TIP-TITE Sanitary Drum Dumper allows dust-free transfer of bulk materials from drums to downstream equipment, and rapid sanitizing between changeovers.

Constructed of stainless steel and suitable for wash-down, the dumper is pneumatically powered and certified for use in areas with hazardous conditions.

A hydraulic cylinder raises and seats the drum against a discharge cone, after which a second hydraulic cylinder tips the drum to an angle of 45, 60 or 90 degrees with a motion-dampening feature. At full rotation, the outlet of the discharge cone mates with a gasketed receiving-ring fitted to the lid of any receiving vessel, creating a dust-tight seal and allowing controlled, dust-free discharge through a pneumatically-actuated butterfly valve into the vessel.

The hydraulic power unit enclosure with sight glass to check gauges and valves, is located on the frame exterior for accessibility during set-up, inspection and maintenance, and houses a pneumatic motor to drive the unit.

It is equipped with a roller conveyor that can be fed by an optional or existing infeed conveyor, allowing drums to roll into place by gravity.

Other Flexicon drum dumpers are available constructed of carbon steel with durable industrial finishes, or with material contact surfaces of stainless steel.
